PTC2000-M2704 Four ports EOC Master
Features
Specification
Application
Video

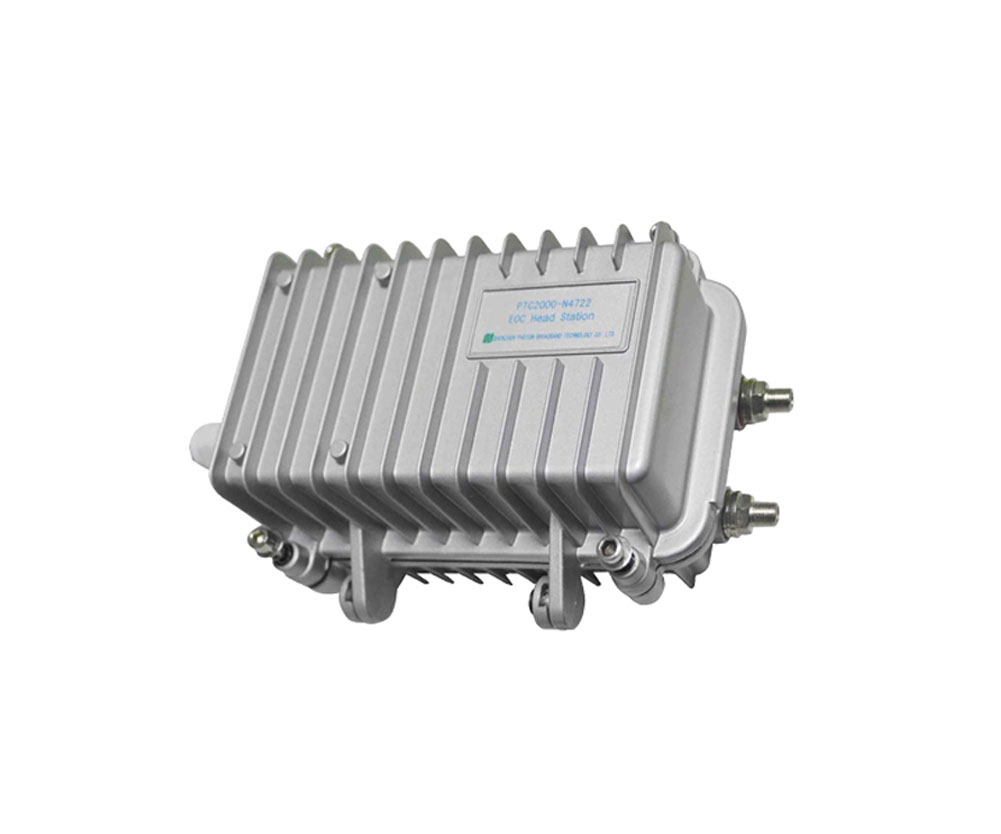

Four ports EOC Master

PTC2000-M2704

Description:

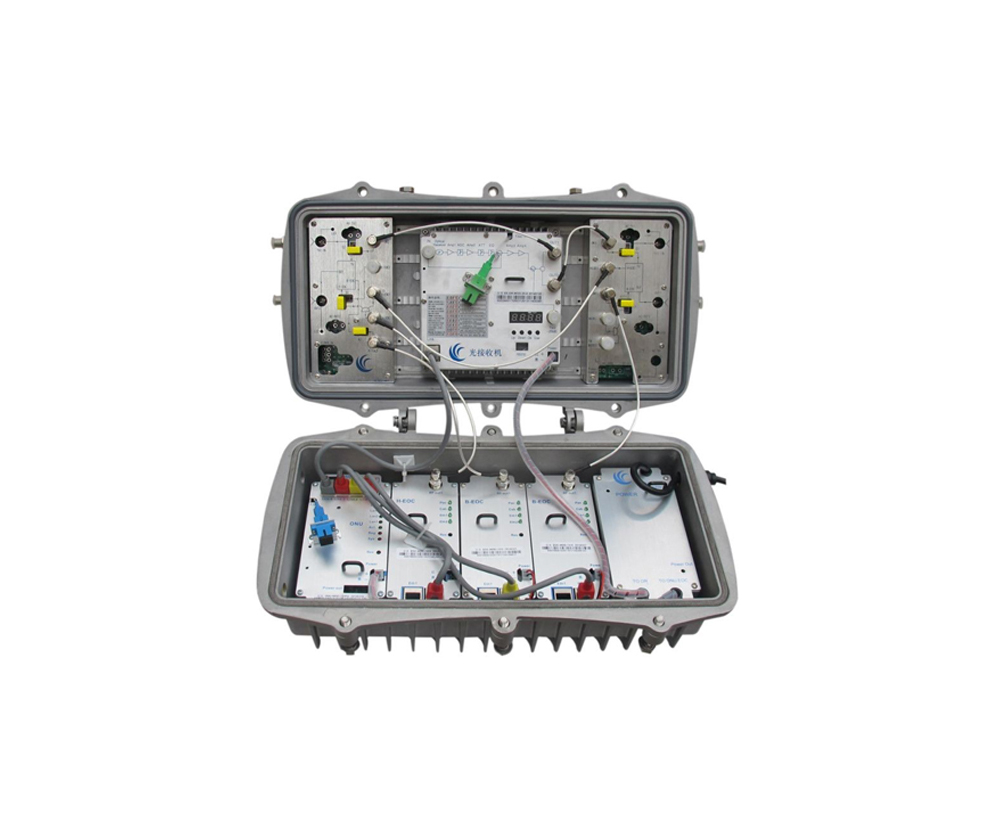

PHOTON PTC2000-M2704 is a cost effective integrated design of ONU, Optical Node and EOC master in one outdoor case, every single set performs operates like single ONU, Single Node and single EOC master.This modularized design largely saves the cost for transport freight, the space of the frame rack, the power consumption。In general, it greatly optimizes the functionality and structure of the normal standard-alone ONU, standard –alone EOC and Optical Node, providing users more convenient operating and maintenance experience.

Features:

1.One Node、one EOC and one ONU module in one case

2. Node bandwidth is 65/87/1000m,AGC arrange is -8 +2 dBm

3. ATT and EQ monitor ,support ATT and EQ adjustment in software management

4. Adopt GaAs MMIC amplifier chip and low consumption

5. The GEPON ONU module supports IEEE802.3ah、802.3u、802.3 protocol

6. The GEPON ONU module supports IEEE802.1q vlan、QoS and multicast protocol

7. The GEPON ONU supports 10/100/1000Mbps speed

8. The EOC master module supports HomePlug AV、IEEE802.1q、802.3/802.3u protocol

9. The RF bandwidth of EOC master module is between 7.5MHz and 35/65MHz

10.The EOC master module uses strong anti-interference OFDM modulation technology and FEC technology

11. supports SNMP  and Web browser network management protocol


SpecificationOptical Node

Parameter

Units

Specifications

Note

Receiver wavelength

nm

1100~1600

Receiver optical power

dBm

-9~+3

AGC Range

dBm

-6~+1

Optical Reflection loss

dB

>45 dB

Noise

pA/Hz

<8

Bandwidth

MHz

87~870

1000MHz Option

Flatness

dB

≤±0.75

Output level

dBμV

2*108 or 4*104

Detection power of RF

dB

-20±0.75

Equalizer  range

dB

0~+15

Attenuation  range

dB

0~+15

Reflection loss of RF

dB

≥16

Impedance

Ω

75

CNR

dB

≥51

59 PAL CW carrier, , , , 1310nm transmitter,  4.0% OMI, 10km optical fiber plus attenuator, -1 dBm optical input power, 88 dBuV out, put level at 870MHz

CSO

dBc

≥60

CTB

dBc

≥65

Anti-lighting or surge

V/A

4000

surge(1.2/50us),

IEEE62.41 and IEC 61000-4-5


Parameter

Units

Specifications

Note

Uplink port

PCS

RJ45,2*Gigabit port

RF interface

PCS

1

power input port

PCS

1

Bandwidth of PHY  model

500Mbps(AR7400);200 Mbps(AR6400)

Light Indicator

Link

ETH (Ethernet口)

Power

RF interface type

F-type Female socket, metric

Impedance of RF output

Ω

75

Power

V

AC100 V -250 V

Power consumption

W

<8W

RF Frequency

7.5~30MHz7.5~67MHz

Output Power of RF

dBuv

100~106dBuv

Sensitivity of RF

dBM

-60dBM

Transmission distance

m

About 700m

Modulation mode

OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK,ROBO,DBPSK, DQPSK

Standard

IEEE802.3,IEEE802.3u,802.1Q,802.1P ,IGM

Modify Reject Protocol

TDMA and CSMA/CAP

Encryption

128-bit AES

ONU Module

Parameter

Units

Specifications

Receive wavelength

nm

1490±20

Input optical power

dBm

-3~-24

Output optical power

dBm

-1~-4

Sensitivity

dBm

≤-24

Transmitting Speed

Mbps

10/100 /1000 auto-negotiation

Transmitting distance

km

20 max

Transmitting wavelength

nm

1310±20

Optical interface type

SC

UNI port

RJ45,4*Gigabit port
